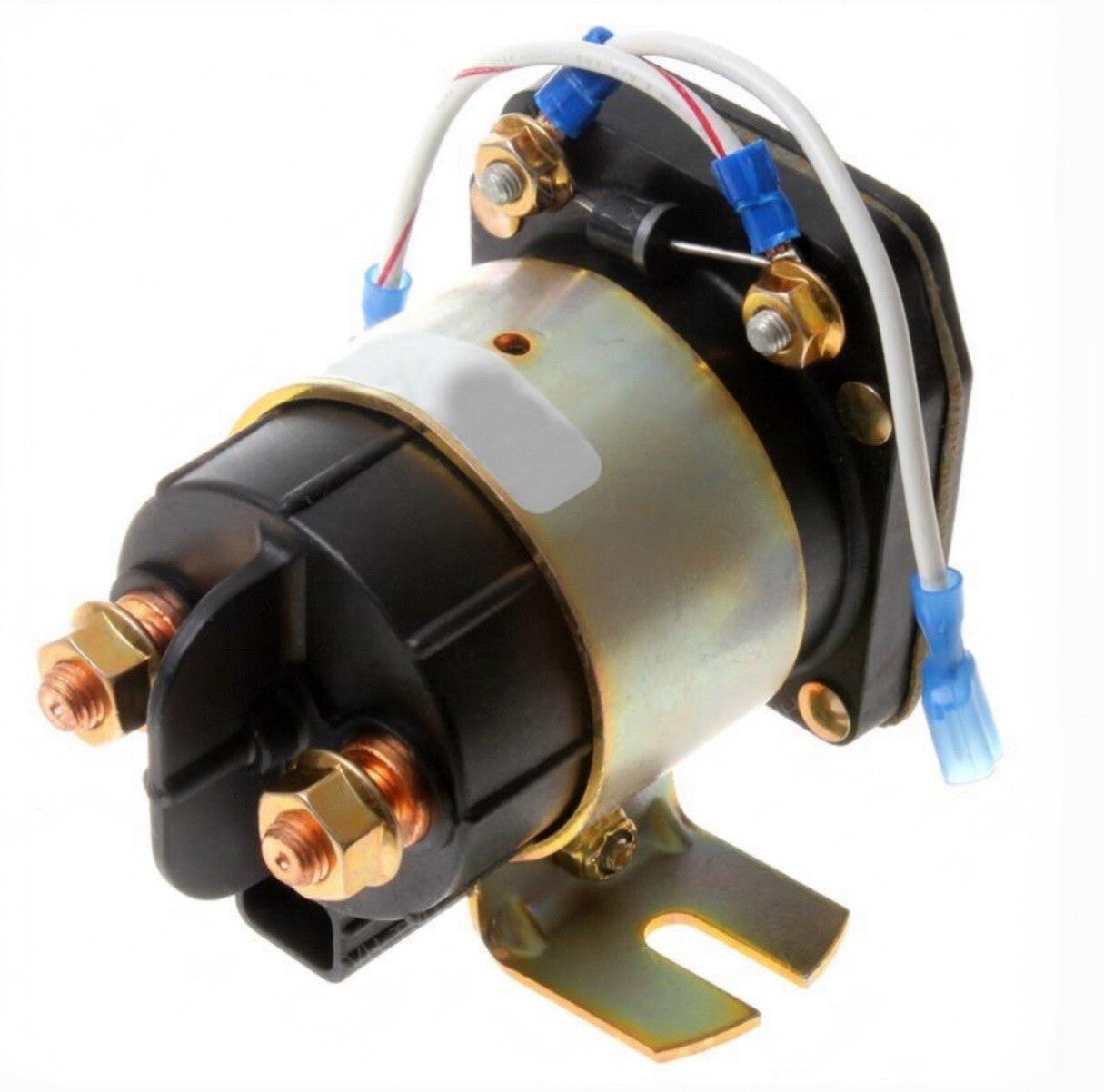

Skyjack 165865 Contactor Hydraulic Pump (24VDC) SJIII4740 | Solenoid Switch

This aftermarket solenoid switch is designed for use with Skyjack scissor lifts such as the SJIII4740 model. It is a 24VDC hydraulic pump contactor with a closed top cover and one normal open contact. The outer thread is right-handed UNF with a maximum width of 72mm and maximum height of 93mm. The solenoid has a resistance of 82.2 Ohm and comes with an external diode but no external resistor.

The contact connection is an outer thread with a maximum length of 84mm and a type of connection on the solenoid is wire w/connector. The mounting surface is flat and the length of the cable of the coil L2 is 180mm. This solenoid switch is a high-quality replacement part that ensures reliable and efficient operation of your Skyjack scissor lift.
